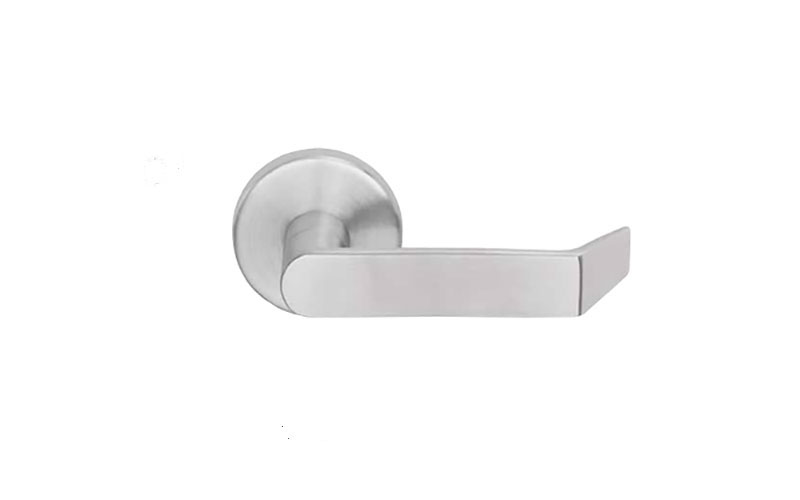

Images may not represent actual product and finish

Schlage L9092EUJ06A626 Lock Electric Mortise Lock

Your Price: $904.50

Retail Price:$1,523.00

You Save:$618.50(41%)

Electrified Mortise Lock, Fail Secure, Outside Lever EU, Outside Cylinder Override, Schlage FSIC Prep, Less Core, 12/24VDC, Satin Chrome

Part Number: SCH_L9092EUJ06A626

Quantity

Description

Schlage L9092EUJ06A626 Lock Electric Mortise Lock

Electrically locking/unlocking outside lever, Outside cylinder (replaces L9080EL/EU) Latchbolt retracted by knob/lever from either side unless outside is locked by key from either side. Auxiliary latch deadlocks latchbolt when door is locked. Inside free

Handing:
L9000 Series lock bodies are field-reversible without disassembly. L400 Series locks are non-handed.
Door thickness: 1-3/4" (44 mm) standard. 1-3/8" (35 mm) to 2-1/2" (64 mm) optional. Over 2-1/2" (64 mm) door ranges vary by function. No escutcheon available for 1-3/4" (44 mm) doors standard. 2" to 2-3/8" (51 mm to 60 mm) optional. Specify door thickness if other than 1-3/4".
Backset: 2-3/4" (70 mm) only.
Armored front:
L9000 Series: 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm) standard. 1-1/16" x 8" x 1-7/32" (27 mm x 203 mm x 6 mm) optional.
L400 Series: 4-7/16" x 3-5/8" x 1" (113 mm x 92 mm x 25 mm)
Case size:
L9000 Series: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm)
Spacing: Knob or lever to cylinder, 3-7/8" (98mm); knob or lever to thumbturn hub, 2-11/16" (68mm).
Bolts: 1" (25mm) throw stainless steel deadbolt and 3/4" (19mm) throw stainless steel latch with anti-friction tongue.
Exposed trim:
Knobs: #41 and #42 heavy-duty wrought brass, bronze or stainless steel knobs match D Series knobs.
Levers: Forged brass or bronze and cast stainless steel. Designs available to match D Series levers. 93 Lever design: Extruded brass, bronze or stainless steel. Mediterranean designs: Forged-brass lever and rose.
Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.
Trim combinations: Available with knob both sides, lever both sides, or knob and lever with rose or escutcheon both sides.
Strike: L9000 Series: ANSI curved lip strike 1-1/4" x 4-7/8" (32 mm x 124 mm) x 13/16" (30 mm) lip to center with dust box standard. L400 Series: 1-1/8" x 3-5/8" (29 mm x 92 mm) with dust box.
Cylinder & keys: 6-pin Everest C123 keyway cylinder with two patented keys standard.

Product Assemble-to-Order. Lead Time 2-5 days

Attributes

Ship via: Can Ship UPS

Alternate Codes: L9080EUJ06A626, L9092EUJ06A626, SCHL9080EUJ06A626

Amp Draw: 400mA

Backset: 2-3/4"

Bolt Protection: 3/4 In.

Cylinder Included: No

Cylinder Type: FSIC Cylinder

Door Bore Size: 2-1/8"

Door Thickness: 1-3/4 In.

Door Thickness Min: 1-3/4"

Dust Box: Plastic

Finish: 626/US26D

Finish Color: Satin Chrome

Finish Description: Satin Chromium Plated

Fire Rated: 3 Hours {A}

Function: 9092EU-Fail Secure

Grade: Grade 1

Hand: Field Reversible

Handing: Field Reversible

Knob/ Lever Design: 06

Knob/ Lever Style: Lever

Latch Bolt Face Type: Square Corner

Latch Bolt Faceplate Size: 8" x 1-1/4"

Latch Bolt Throw: 3/4"

Latch Bolt Type: Deadlatch

Lever Knob Design: 06 - Lever

Limited Warranty: 1 Year

Lock Category: Mortise Lock

Lock Face Size: 8 In. x 1-1/4 in.

Operating Voltage: 12VDC/24VDC

Power: Hard Wired

Rose Escutcheon Design: A - Rose

Rose/ Escutcheon Size: 2-1/8"

Rose/ Escutcheon Style: Rose

Screws: Combination

Series: L909x Series

Strike Height: 4-7/8 In.

Strike Number: 10-072

Strike Size: 4-7/8" x 1-1/4"

Strike Type: ASA

Strike Width: 1-1/4 In.

Subtype: Electric Mortise Lock

Supplier: Schlage

Switch Type: None

Type: LOCK SETS

Voltage: 12V DC, 24V DC
