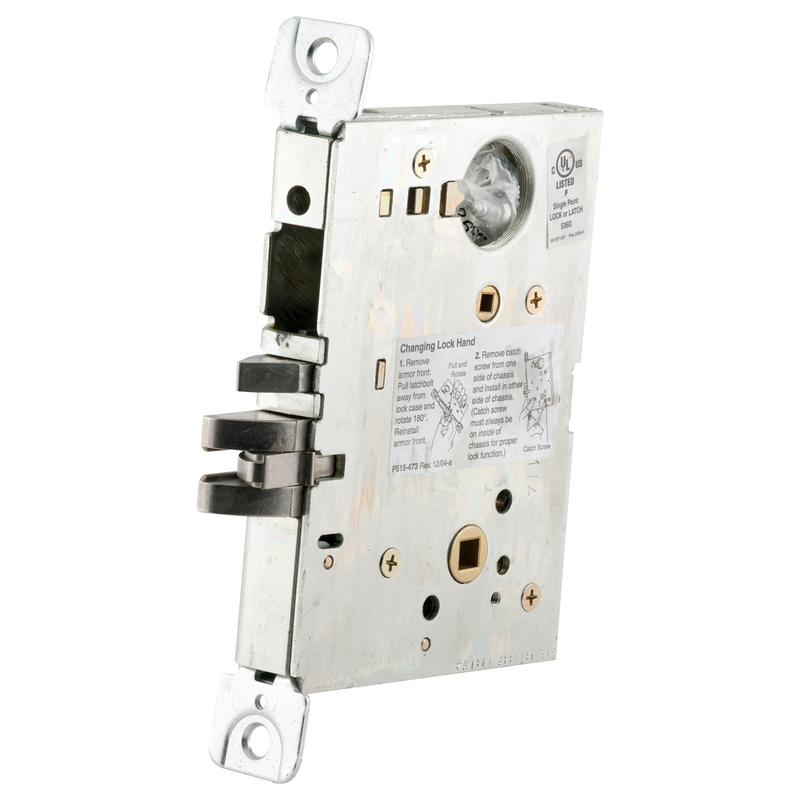

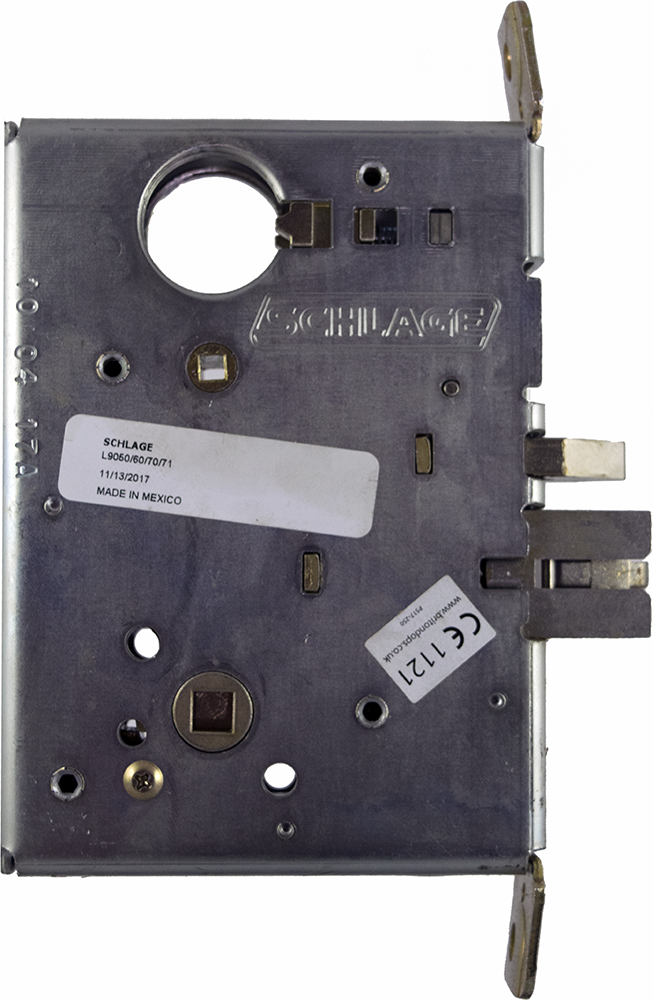

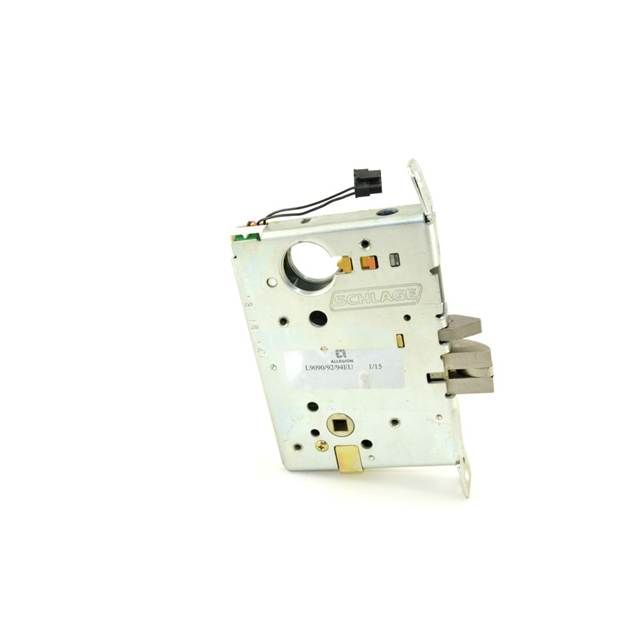

Schlage L9090LB Lock Electric Mortise Lock

Your Price: $418.50

Retail Price:$775.00

You Save:$356.50(46%)

Electrified Mortise Lock Body, Fail Safe/Fail Secure, 12/24VDC

Part Number: SCH_L9090LB

Quantity

Schlage L9090LB Lock Electric Mortise Lock

12 or 24 VDC. 0.4 amps. draw 0.1 amps hold. Field selectable EL or EU. Optional RX switch available.

Electrified Lock Body
L Series
NA
Made With Strong Materials
Many Parts Are Finish Specific
Universal input voltage - accepts 12 or 24V DC for installation flexibility
User selectable fail safe/fail secure - changing mode between EL and EU is as simple as flipping a switch on the lock case
Low maximum current draw - 0.4amps - allows multiple locks on a single power supply
Low holding current - 0.01 amps - produces minimal heat, eliminating "hot levers" in electrically locking applications and allowing reliable operation even in poorly ventilated wood doors
All-new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity
New modular RX design – RX can be added on at a later time without opening the lock case
Standard Allegion Connect quick-connect Molex system (can be cut off if traditional wiring splicing preferred)

Product Assemble-to-Order. Lead Time 2-5 days

Ship via: Can Ship UPS

Alternate Codes: L9090LB, SCLL9090LB

Amp Draw: 400mA

Backset: 2-3/4"

Bolt Protection: 3/4 In.

Door Thickness: 1-3/4 In.

Door Thickness Min: 1-3/4"

Fire Rated: 3 Hours {A}

Function: Field Selectable (Safe/Secure)

Grade: Grade 1

Hand: Field Reversible

Handing: Reversible

Knob/ Lever Style: Lever

Limited Warranty: 1 Year

Lock Category: Mortise Lock

Lock Face Size: 8 In. X 1-1/4 In.

Operating Voltage: 12VDC/24VDC

Power: Hard Wired

Screws: Combination

Series: L Series

Strike: 10-072 Strike

Subtype: Mortise

Supplier: Schlage

Switch Type: None

Type: LOCK SETS
