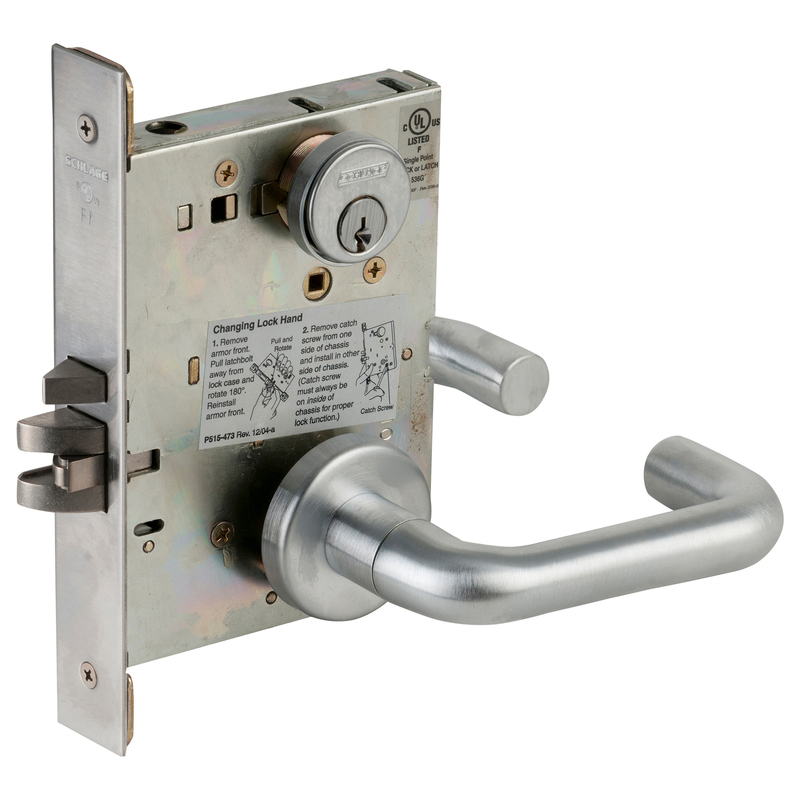

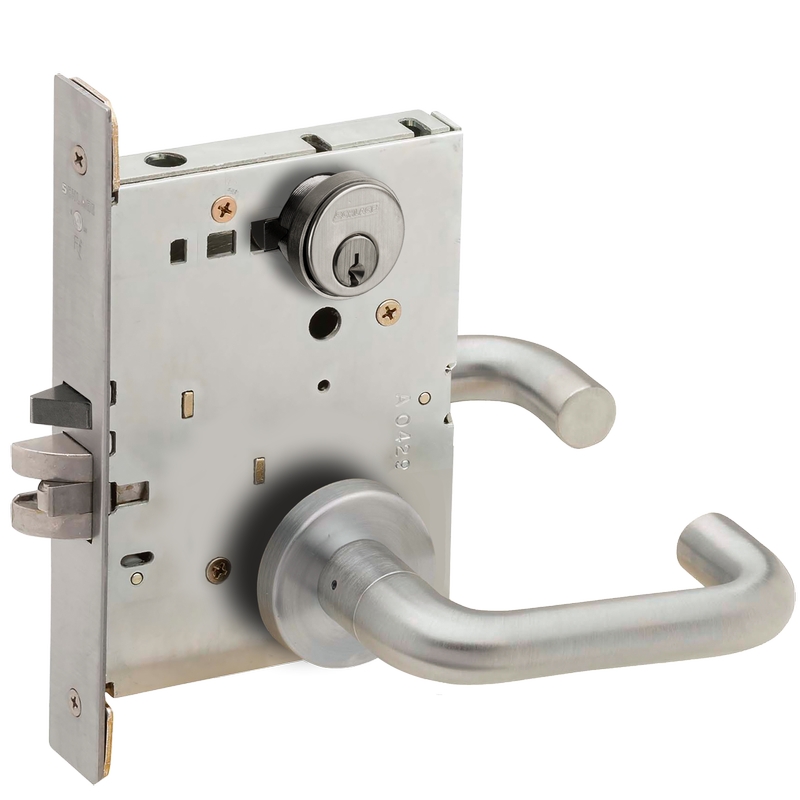

Latchbolt retracted by knob/lever from either side unless outside is locked by key from either side. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.
Attributes
Ship via: Can Ship UPS
Alternate Codes: L9080P03A626
Ansi Function: F07 - Storeroom/Exit
Baa Qualified: Yes
Backset: 2-3/4"
Bolt Protection: 3/4"
Cam Number: L583-254
Cam Type: Schlage L
Country of Origin: Mexico
Cylinder Included: Yes
Cylinder Length: 1-1/8"
Cylinder Type: 6-Pin Cylinder
Design: 03 Lever and A Rose
Door Bore Size: 2-1/8"
Door Thickness: 1-3/4"
Door Thickness Min: 1-3/4"
Dust Box: Plastic
Finish: 626/US26D
Finish Color: Satin Chrome
Finish Description: Satin Chrome
Fire Rated: 3 Hours {A}
Function: 9080-Storeroom Lock
Function Family: Storeroom
Grade: Grade 1
Hand: Field Reversible
Handing: Field Reversible
Keying: Keyed Different
Keys: Cut
Keyway: S123
Knob/ Lever Design: 03
Knob/ Lever Style: Lever
Latch Backset Dim: 2-3/4"
Latch Bolt Face Type: Square Corner
Latch Bolt Faceplate Size: 8" x 1-1/4"
Latch Bolt Throw: 3/4"
Latch Bolt Type: Deadlatch
Latch Type: Dead Latch (Guarded)
Lever Knob Design: 03 - Lever
Lever Knob Design Family: Straight Return Lever
Limited Warranty: 3 Years
Lock Category: Mortise Lock
Lock Face Size: 8" x 1-1/4"
Manufacturer Function Description: Latchbolt retracted by key outside or by knob/lever inside. Outside knob/lever always inoperative. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.
Num Of Keys: 2
Num Pins: 6
Pocket Dimensions: 6-5/8" x 4-1/2"
Projection: 2.813"
Restricted Keyway: No
Restrictions: None
Rose Escutcheon Design: A - Rose
Rose Escutcheon Dimensions: 2-1/8"
Rose/ Escutcheon Size: 2-1/8"
Rose/ Escutcheon Style: Rose
Screws: Combination
Series: L Series
Strike: 10-072 Strike
Strike Height: 4-7/8"
Strike Number: 10-072
Strike Size: 4-7/8" x 1-1/4"
Strike Type: ASA
Strike Width: 1-1/4"
Subtype: Mortise Lock
Supplier: Schlage
Type: LOCK SETS
